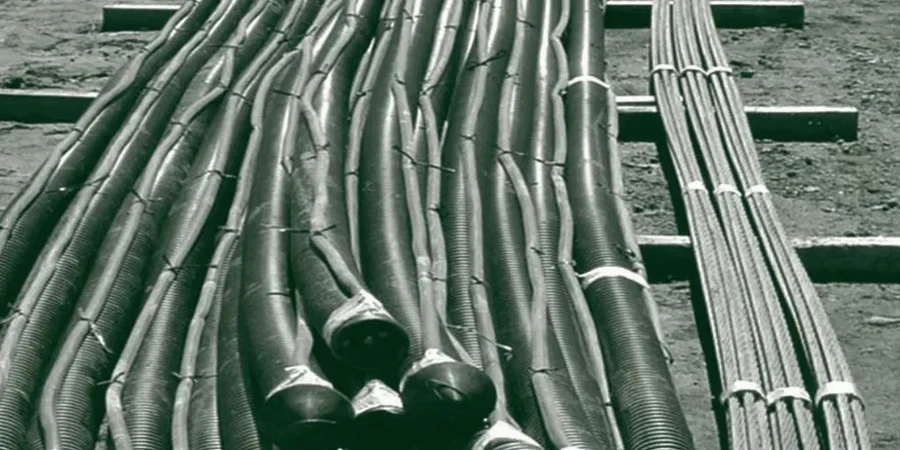

Anchor design in Frisco must address the specific geotechnical challenges of the Eagle Ford Shale and the expansive clay formations that characterize Collin and Denton Counties. The International Building Code (IBC) and ASCE 7 set the baseline for minimum design loads, but a purely prescriptive approach often falls short in local soils where seasonal moisture fluctuations can generate lateral pressures that exceed textbook assumptions. Our team correlates site-specific parameters from subsurface exploration—including SPT blow counts and Atterberg limit profiles—with the required unbonded length and grout-to-ground bond stress for each anchor. For deep excavations near the Dallas North Tollway corridor, we routinely evaluate both active and passive systems, considering the long-term relaxation behavior of the stiff clays that dominate the regional geology. The bond zone design is iterated against the available stratigraphy, ensuring that the fixed anchor length is seated in competent material rather than the desiccated upper crust that can lose strength during wet-dry cycles common in North Texas summers.
Anchor bond stress in Frisco's expansive clays is not a constant—it's a function of moisture regime, stratigraphic continuity, and proof-test validation under sustained load.
Our approach and scope
A recurring mistake we observe in Frisco is the specification of passive anchors with insufficient embedment into the Cretaceous shale, particularly when contractors rely solely on presumed bond values from generic correlations without site-specific verification. The transition zone between the weathered Austin Chalk and the underlying Eagle Ford can exhibit a strength reduction of up to 40 percent over a vertical interval of just a few feet; an anchor that terminates in this interface will creep under sustained load. We avoid this by pairing the anchor design with a solid field investigation program. For instance, combining the design phase with
SPT drilling provides the stratigraphic control necessary to position the bond length within a consistent geotechnical unit. In cases where the retaining structure must resist seismic earth pressures, we extend the analysis to include the horizontal acceleration coefficients prescribed by the local seismic design category, which for Frisco falls under a low-to-moderate classification per USGS probabilistic hazard maps. The load-transfer mechanism is modeled using the beam-on-elastic-foundation method, and the proof-testing protocol is aligned with the recommendations of the Post-Tensioning Institute (PTI). Where the retained soil profile includes significant granular lenses, the
CPT test offers a near-continuous profile of tip resistance and sleeve friction, allowing us to refine the bond stress estimate along the entire anchor length rather than relying on point data alone.
Local geotechnical context
The anchor installation rigs we mobilize for projects in Frisco are typically track-mounted hydraulic drills equipped with duplex or concentric overburden drilling systems, essential for maintaining hole stability through the highly fractured and sometimes caving upper shale layers. These rigs must operate within the confined footprints of commercial developments along Preston Road or Legacy Drive, where adjacent structures and utilities leave minimal tolerance for deviation. The primary geotechnical risk is not a catastrophic failure at lock-off, but rather a progressive loss of load over several annual wet-dry cycles. This phenomenon, known as load relaxation, is particularly pronounced in the active zone where soil suction changes can alter the normal stress acting on the bond surface. We mitigate this by specifying a performance test on a sacrificial anchor at the start of the project, measuring creep movement at incremental load holds over a 60-minute period, and adjusting the lock-off load accordingly. An often-underestimated risk in Frisco's older subdivisions is the presence of undocumented fill over natural drainage features, which can produce differential lateral movement and bending moments in the anchor head connection that exceed the capacity of standard bearing plates.
Quick answers
What is the typical cost range for an anchor design package for a retaining wall in Frisco?
The engineering fee for a complete anchor design package—including geotechnical parameter derivation, anchor load calculations, bond length determination, and preparation of performance testing specifications—typically falls between US$1,050 and US$3,520, depending on the number of anchor rows, the height of the retained soil, and whether pre-production load testing is included in the scope.
How do you determine the unbonded length for active anchors in expansive clay?
The unbonded length is calculated to extend the free-stressing portion of the anchor well beyond the theoretical active failure surface defined by the Rankine or Coulomb wedge. In Frisco's expansive clays, we add an additional buffer of at least 5 feet beyond the critical slip surface to account for the desiccation crack zone, which can temporarily alter the failure geometry during prolonged drought conditions. The final unbonded length is verified graphically on the design cross-section using the soil strength parameters from consolidated-undrained triaxial testing.
What is the difference between active and passive anchor behavior in a tieback wall?
Active anchors are post-tensioned to a specified lock-off load immediately after grout curing, actively compressing the retained soil mass and minimizing lateral deflection. Passive anchors—often called soil nails when installed sub-horizontally—are fully grouted and only develop tensile resistance as the soil mass deforms toward the excavation. In Frisco, the choice between the two depends on the allowable lateral movement: active systems are specified for permanent walls adjacent to existing buildings where deflection must be kept under 0.5 inches, while passive systems are more economical for temporary cuts where some relaxation is acceptable.
