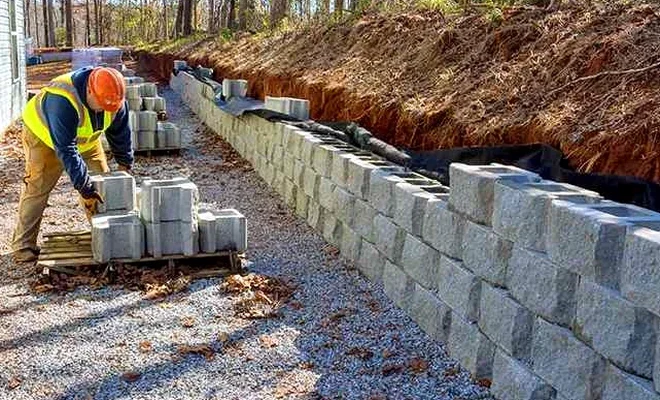

Retaining Wall Design in Frisco Texas: Geotechnical Data That Shapes the Excavation

Frisco sits on the Blackland Prairie, where the Taylor Marl formation creates expansive clay soils that swell with winter moisture and shrink during the long Texas summer. This seasonal volume change imposes lateral pressures that a generic retaining wall design simply cannot handle. Our laboratory team measures the specific plasticity index and swell potential of your site’s clay before any wall geometry is drafted. The data feeds directly into Rankine or Coulomb calculations so the stem, heel, and key dimensions match the actual soil behavior, not a textbook assumption. We also pull undisturbed Shelby tube samples for triaxial testing when the wall height exceeds 12 feet, because the City of Frisco’s drainage channels and detention ponds introduce saturation scenarios that demand effective stress parameters. Across Collin County, the design must also account for the 30-foot-deep Eagle Ford shale layer that occasionally appears in deeper cuts along the Dallas North Tollway corridor.

Expansive Frisco clay doesn’t just push—it swells laterally. Measuring that swell pressure in the lab before design avoids wall tilt that shows up in the first dry season.

Our approach and scope

Frisco’s transformation from a small railroad stop to one of the fastest-growing cities in the U.S. means retaining walls now border everything: residential subdivisions along Stonebrook Parkway, commercial pads near The Star, and municipal projects by the new Frisco Public Library. Each land use triggers different IBC exposure categories and surcharge conditions. We characterize the retained soil profile with ASTM D2487 grain-size distribution and Atterberg limits, then run direct shear or triaxial tests to obtain the drained friction angle and cohesion intercept for the design backfill and the foundation bearing stratum. When the wall supports a roadway or parking lot, we combine the lab parameters with plate load testing results to verify that the bearing capacity under the footing exceeds the eccentric load from the stem moment. This integrated approach prevents the differential settlement that cracks MSE panel facings within the first two years of service.

Local geotechnical context

The Taylor Marl beneath Frisco can lose over 60% of its undrained shear strength when its water content rises just 5% above the plastic limit. A retaining wall designed with dry-condition parameters faces a real risk of rotational failure after a heavy spring rain, especially if the wall retains a slope that drains toward the structure. This is the scenario that caused a 14-foot MSE wall to bulge outward at a commercial site near US-380 in 2019—a failure traced back to unaccounted pore pressure buildup behind the reinforced zone. Our lab runs consolidated-undrained triaxial tests with pore pressure measurement to quantify that strength loss before the design is finalized. We also verify the backfill material meets the gradation and free-drainage specs of the project’s geotechnical report, because a single lens of fat clay placed behind the wall can trap water and double the design lateral load within one wet season.

Technical data

Parameter	Typical value
Drained friction angle (φ')	26°–32° (Taylor Marl, CH)
Cohesion intercept (c')	200–800 psf (stiff to hard)
At-rest earth pressure coefficient (K₀)	0.45–0.70 (NC to OC clay)
Unit weight (γ)	115–130 pcf
Swell pressure (ASTM D4546)	2,000–8,000 psf
Active wedge depth (H)	Wall height × 0.3–0.5
Design groundwater assumption	Hydrostatic at wall heel (worst case)

Complementary services

Lateral Earth Pressure Package

Active, at-rest, and passive pressure diagrams calculated from site-specific friction angle, cohesion, and unit weight. We deliver the pressure ordinates at each foot of wall height for direct input into RISA or ENERCALC.

Foundation Bearing Analysis

Bearing capacity and settlement evaluation beneath the wall footing, including eccentricity checks for overturning moment. We factor in the seasonal moisture variation zone in the upper 8 feet of Frisco clay.

Backfill Testing and QA

Nuclear density testing and sand cone verification during wall construction. We confirm the backfill meets the free-drainage specification and that compaction achieves 95% of modified Proctor density per the project’s structural backfill requirement.

Global Stability Check

Slope stability analysis for walls that retain sloping ground or sit near detention ponds. We use limit equilibrium methods to check the factor of safety against deep-seated rotational failure.

Quick answers

What does retaining wall design cost for a Frisco residential lot?

For a typical residential retaining wall in Frisco—say, 4 to 8 feet tall and under 60 linear feet—the geotechnical investigation and design parameter report ranges between US$1,040 and US$4,580. The final number depends on how many borings are needed, whether laboratory swell testing is required by the City, and if the wall supports a surcharge like a driveway or pool deck. This cost covers the soil boring, lab testing, and the signed parameter report you submit with the building permit application.

Why does Frisco require a geotechnical report for retaining walls over 4 feet?

The reference range for this service in Frisco Texas is US$1.040 - US$4.580. The final price depends on the project scope and volume.

How long does it take to get the retaining wall design parameters after drilling?

The standard turnaround is 10 to 14 business days. The timeline breaks down into three phases: drilling and sampling on site (one day), laboratory testing including Atterberg limits, grain-size analysis, and direct shear or triaxial tests (seven to ten days), and the engineering report with lateral pressure diagrams and bearing recommendations (two to three days). If the City requires swell testing—common for retaining walls in the western half of Frisco where the Taylor Marl is closest to the surface—add four days for the consolidation-swell procedure per ASTM D4546.
