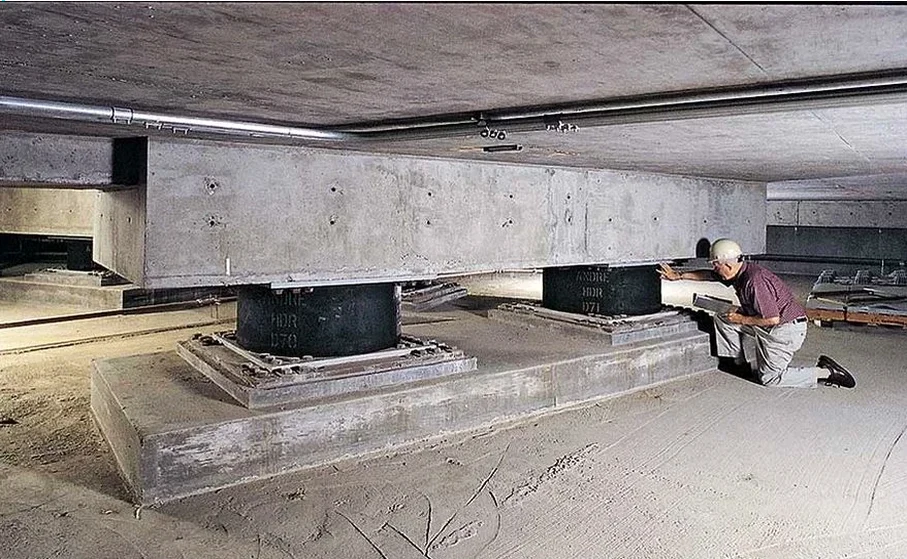

Base Isolation Seismic Design in Frisco Texas: Protecting Structures on Expansive Clay

Drive from the dense, master-planned neighborhoods of Phillips Creek Ranch over to the mixed-use developments at The Star in Frisco, and you'll cross more than just city blocks. You're traversing a geological boundary where the Houston Black clay transitions from moderately deep to significantly expansive, swelling up to 10% when it gets wet. This isn't just a curiosity for the local soil engineer; it's the primary reason why conventional fixed-base structures in this part of Frisco can experience differential heave that amplifies seismic response, even from distant events like the Irving earthquake swarms. In our experience, the decision to incorporate base isolation seismic design here isn't driven solely by the potential for a major New Madrid-type event, but by the daily reality of a dynamic soil that keeps structures in constant micro-motion. When we assess a site for a new emergency operations center or a high-value data farm near the Dallas North Tollway, we aren't just looking at peak ground acceleration; we're modeling how the isolators will perform over decades of shrink-swell cycles combined with the region's moderate but frequent seismicity.

In Frisco's expansive clay, base isolation must solve for the 10% seasonal volumetric swell just as robustly as it does for the 0.10g design spectral acceleration.

Our approach and scope

A common oversight we see from teams new to the Frisco market is treating the isolator selection as a purely structural exercise, disconnected from the geotechnical reality of the Eagle Ford Shale. They'll specify lead-rubber bearings based on a generic ASCE 7 spectrum without accounting for the fact that the underlying expansive clay can create a variable stiffness profile that alters the fundamental period of the entire isolated system. A proper base isolation seismic design in this part of Texas requires a iterative loop between the geotechnical investigation and the structural analysis. For instance, when we drill down to the weathered shale and perform comprehensive laboratory testing, we often find that the soil's stiffness degrades significantly under cyclic loading, something a simple SPT blow count won't capture. This is where integrating a detailed site-specific seismic hazard analysis becomes non-negotiable, as it allows us to refine the ground motion inputs for a time-history analysis that truly reflects the deep soil column beneath Frisco, not just a generic site class D assumption. Only then can we define the displacement capacity and damping ratios that will keep a structure both level during soil movement and functional after an earthquake.

Local geotechnical context

Frisco's population has exploded past the 220,000 mark, filling the 68 square miles with everything from single-family homes to critical infrastructure like the Baylor Scott & White Medical Center. The last significant regional reminder was the 4.0 magnitude earthquake near Venus, Texas, in 2015, which, while modest, caused surprisingly sharp accelerations in the soft soils of the northern metroplex. The bigger risk we communicate to developers is not just the structural collapse hazard, but the functional failure scenario. A non-isolated hospital in Frisco, built on stiffened slabs over untreated expansive clay, could see its post-earthquake operability compromised not by beam failure, but by a 3-inch differential settlement that misaligns every critical gas line and data conduit in the building. Base isolation seismic design decouples the superstructure from this differential movement, ensuring that the lifeline systems remain intact and the facility can serve its emergency response function when the region needs it most. Ignoring the soil-structure interaction on this specific clay formation is a gamble on operational continuity that no essential facility owner should be taking.

Technical data

Parameter	Typical value
Maximum Design Displacement (MCE Level)	12 - 24 inches (site-specific)
Effective Isolated Period (Target)	2.5 - 3.5 seconds
Equivalent Viscous Damping	15% - 30%
Isolator Type (Common for Soil Class D/E)	High-Damping Rubber / Friction Pendulum
Site Class per ASCE 7-22 Chapter 20	D or E (expansive clay profile)
Uplift Restraint Capacity (per isolator)	50 - 200 kips
Wind Restraint Threshold (Service Level)	Design wind load without lock-up
Moisture Barrier Depth (for stable subgrade)	8 - 12 feet below base mat

Complementary services

Nonlinear Time-History Analysis & Isolator Design

We develop 3D finite element models of the superstructure and isolation layer, using site-specific ground motion suites scaled to the ASCE 7-22 uniform hazard spectrum. This service includes the design of the moat wall and flexible utility connections to accommodate the total maximum displacement.

Prototype & Production Isolator Testing Program

We design and oversee the full-scale dynamic testing protocol per ASCE 7-22 Section 17.8, including aging, scraped, and wind-corridor tests at the University of California, San Diego's Caltrans SRMD facility or similar. We then correlate the test results with our analytical models to ensure the manufactured isolators meet the specified effective stiffness and energy dissipation criteria before installation.

Regulatory framework

ASCE/SEI 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2024 International Building Code (Chapter 17, Structural Tests and Inspections), ASTM D4015 Standard Test Methods for Modulus and Damping of Soils by Resonant-Column, AASHTO Guide Specifications for Seismic Isolation Design, FEMA P-1051 NEHRP Recommended Seismic Provisions

Quick answers

What is the typical cost range for a base isolation seismic design and testing program for a mid-rise essential facility in Frisco?

For a mid-rise essential facility in Frisco, the complete design package, including the nonlinear time-history analysis, isolator specifications, prototype testing oversight, and construction administration support, typically ranges from US$3,660 to US$7,300 depending on the structural complexity and the number of required ground motion pairs. This covers the engineering scope; the manufacturing and installation of the isolators are a separate procurement.

How does Frisco's expansive clay affect the moat wall and utility connections in an isolated structure?

The expansive Houston Black clay can create a seasonal lateral pressure cycle against the moat retaining walls, which we account for by designing a wider seismic gap than typically seen in rocky sites. We also specify flexible, braided stainless steel utility connections with service loops capable of absorbing the combined maximum seismic displacement plus the annual shrink-swell movement, preventing a brittle failure at the building entry point.

Does the amended Frisco building code require base isolation for any specific building types?

The City of Frisco adheres to the IBC, which mandates seismic isolation or other advanced seismic force-resisting systems for Risk Category IV structures (essential facilities like hospitals and emergency response centers) when the anticipated spectral acceleration exceeds certain thresholds. Even for Risk Category III structures (schools, assembly halls), we frequently find that base isolation becomes the most cost-effective solution when you factor in the lifetime cost of repairing expansive soil damage versus the upfront investment in an isolation system.
